£5,460.00 inc. VAT (£4,550.00 exc. VAT)
FlexEJ designs and manufactures in the UK.
If you need different sizes, materials or something designed to your exact requirements then please get in contact and we will be happy to help.
4 in stock

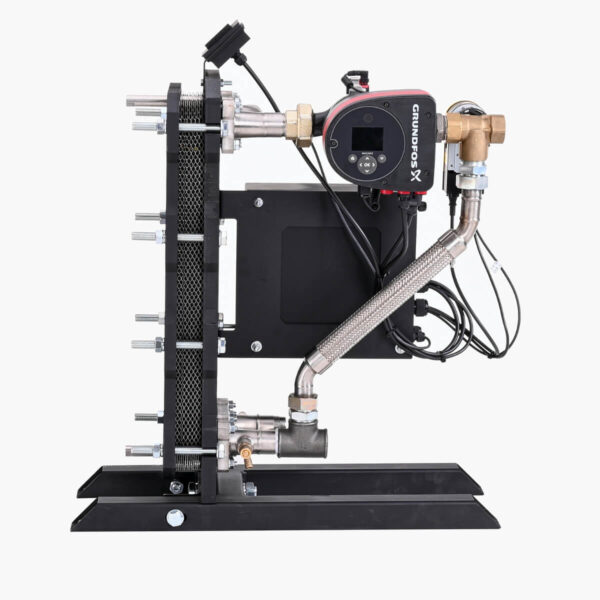

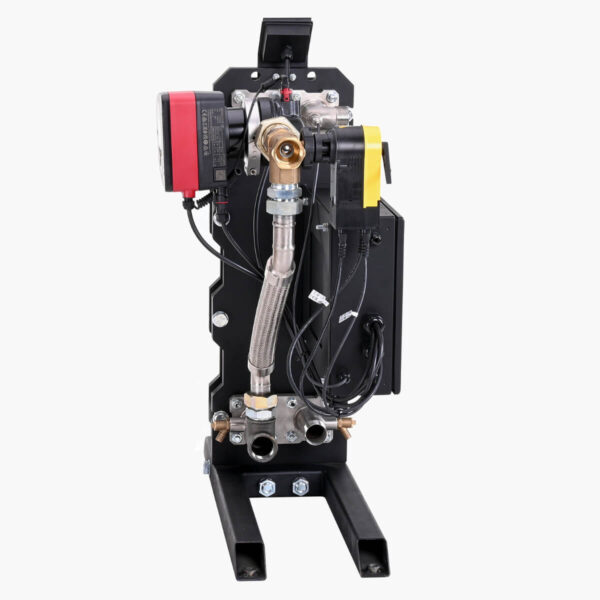

DN32 FlexEJ PhexPak packaged plate heat exchanger for commercial DHW and LTHW applications. Heat load duty nominally 150 kW for DHW secondary @10°C–60°C, 80°C primary with varying ΔT. Manufactured in our factory in the UK. Contact sales for different ratings, connections and selection advice – we will be pleased to quote any PhexPak size or configuration you may require –
| Weight | 110 kg |
|---|---|
| Dimensions | 75 × 30 × 90 cm |
| Pipe Size | DN32 (1¼″) |
| Application | HVAC water applications – HTHW, LTHW, heating water, chilled water, potable water |
| Not Suitable For | Steam |
| PE(S)R (PED) | SEP, not marked, use with Group 2 liquid media only |
| Heat Load Duty | 150 kW |
| Pressure Rating | 10 barg @ 110 °C |
| PN Rating | PN10 |
| Installation Length | 745 mm |
| Installation Width | 395 mm |
| Height | 890 mm |
| Material | Primary – Cast Iron & Stainless Steel, Secondary Stainless Steel |
| Connection Type | BSP |
| Connection | EN10226 – Primary Rp & R 1¼″ – Secndary Rp 1¼″ |
| Conformance | WRAS |
| Shipping | Pallet (2-3 days) |
| Media | Water (Drinking), Water (HVAC LT Heating) |
