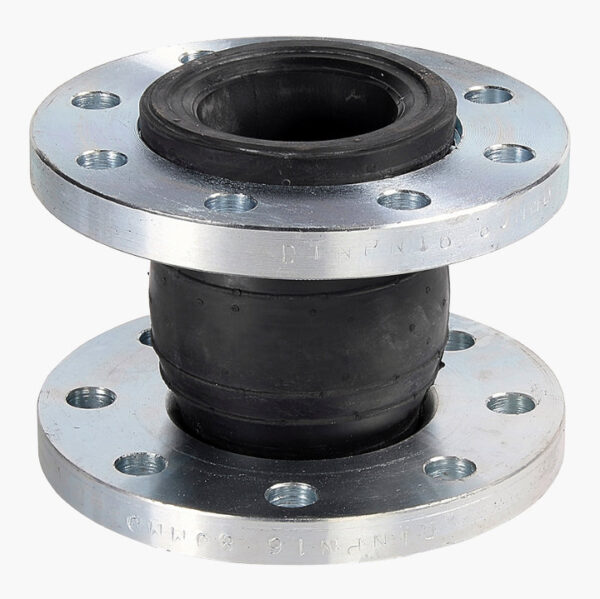

DN80 (3″) FlexEJ EPDM Rubber Bellows – Length 150 mm

DN80 (3″) FlexEJ EPDM Rubber Bellows – Length 150 mm

£54.85 inc. VAT (£45.71 exc. VAT)

DN80 FlexEJ Flanged Rubber Bellows - EPDM for HVAC applications - pipe expansion, misalignment and vibration.

16 in stock

SKU: R0080SF10B16U
Loading...

Description

DN80 FlexEJ Flanged Rubber Bellows – EPDM for HVAC applications – pipe expansion, misalignment and vibration. For Nitrile and other rubber types see the Elaflex range.

Additional information

Weight 6.5 kg
Dimensions 15.0 × 20.0 × 20.0 cm
Pipe Size

DN80 (3″)

Application

For pipe expansion, misalignment and vibration. HVAC water applications – LT heating, waste, sanitary, chilled

Bellows Material

EPDM

Bellows Description

EPDM liner with nylon reinforcing

Not Suitable For

Potable / drinking water, mineral oils or oil contaminated water, gases

PE(S)R (PED)

SEP, not marked, use with Group 2 liquid media only

Pressure Rating

16 barg @ 20 °C to 6 barg @ 95 °C

Vacuum Rating

-400 mbar with no additional support ring

PN Rating

PN16

Installation Length

150 mm

Axial Movement

+9/-12 mm

Lateral Movement

± 12 mm

Angular Movement

± 15 °

Tie Rods

No

Connection Type

Flange

Connection

PN16 – swivel Carbon steel flanges – Galvanised

Shipping

Standard (24hrs)

Media

Water (HVAC Chilled), Water (HVAC LT Heating)

Recommended for this FlexEJ EPDM Flanged Bellows item
M16x70 FlexEJ Bolt Set
M16x70 FlexEJ Bolt Set
Bolt set for one pair of flanges. Suitable for PN6: DN125-200 / PN10: DN80-125 / PN16: DN80-125
